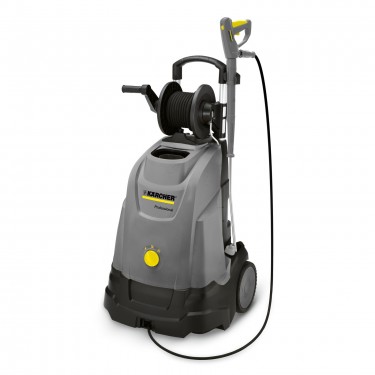

Karcher Karcher HDS 5/11 U

SKU: 1.064-003

Exc VAT£...... CALL FOR A COMPETITIVE PRICE

More Views

Please contact us to make an enquiry

Call Now: 0113 418 0011

Competitively priced entry class model of a hot water high-pressure cleaner.
Innovative Upright design ensures good mobility and ergonomics. Very user-friendly due to one-button-operation and integrated hose.



FREE DELIVERY, INSTALLATION AND OPERATOR TRAINING



2 YEARS WARRANTY




Key Features:
  • Central control panel
  • One switch control for on/off and hot and cold water operation
  • Heating element compatible with bio-diesel fuels

Details

This machine fits easily in vertical position in a vehicle for transportation from one location to the next. Thanks to their compact size, these units take up a minimum of storage space when they are not in use. Large diameter wheels as well as a ergonomically shaped push/pull handle ensure excellent manoeuvrability and mobility, even on difficult surfaces.

The three-piston axial high-pressure pump has hardened stainless-steel pistons and a brass cylinder head. A pressure switch shuts down the unit automatically when the trigger gun is closed. This relieves the load on components and prolongs their service life.

High-pressure pump, burner fan and heating oil pump are driven by an electric motor and are combined to form a drive module. This principle not only ensures a very compact assembly and a high power output, it also makes the units exceptionally reliable.

The characteristics of the time-provenKarcher boiler-technology are high performance in a minimum of space while ensuring full compliance with the statutory emission limits. Suitable for use with bio-diesel fuels.

Single-phase unit with air-cooled two-pole electric motor. Three-piston axial pump with hardened stainless-steel pistons.
Chemical feed in low-pressure mode.

Additional

application
  • Cleaning vehicles and workshops in small companies
  • General cleaning tasks in the crafts and trades
  • Small garages
  • Building service contractors
features
  • Central control panel
  • One switch control for on/off and hot and cold water operation
  • Heating element compatible with bio-diesel fuels
technical
Dimensions (L x W x H) 620 x 620 x 995 mm
Power cable -
Connected load 2.2
External temperature -
Fuel tank 6.4 lt
Pressure 110/11 bar/Mpa
Water flow rate 450 l/h
Weight 68 kg
Heating output hot/cold
Detergent tank -
Power supply 1/240/50 Ph/V/Hz
Max. Temperature max. 80 _C
Consumption fuel oil 2,4 kg/h
scope
  • Anti-twist system (AVS)
  • Pressure switch control
  • Trigger gun extended
  • High pressure hose 10m
  • Spray lance 550 mm
